1. T-block adjustment results in better density effect in the horizontal direction.

2. The gluing process is integrated onto the gasket.

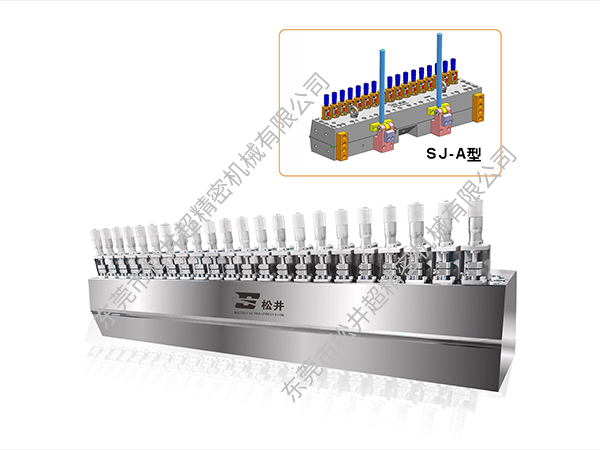

Molding head parameters

Size (L): 150 - 2000mm

Material: Special steel, integral coating

Adjustment method: Micrometer adjustment

Accuracy (Straightness / Planeness)

a) 1000mm, ≤ 2μm, surface roughness Ra ≤ 0.025μm

b) 1000 - 2000mm, ≤ 3μm, surface roughness Ra ≤ 0.025μm

Coating width: 80 - 1900 mm

Mold cavity: Single/Liquid cavity

Applicable range of paste viscosity: 2000 - 25000 cps

Features: No compression, the lip opening does not undergo elastic deformation, facilitating edge adjustment; visualized and quantifiable for precise adjustment.

1. T-block adjustment results in better density effect in the horizontal direction.

2. The gluing process is integrated onto the gasket.

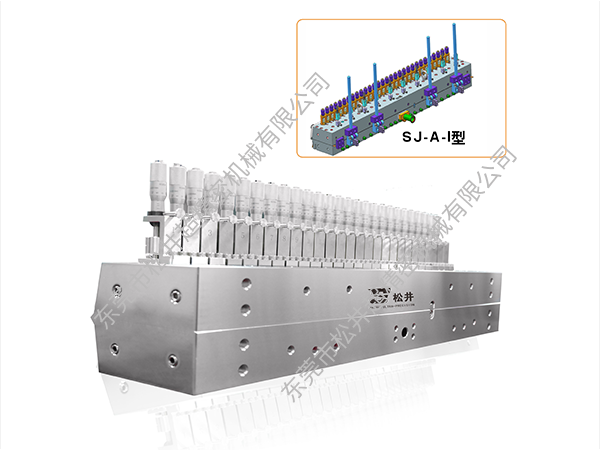

Molding head parameters
